CAMLOCK A 3″ Specifications:
| Type: | CAMLOCK A (Female × male thread) |
| Purpose: | Quick-disconnect coupling for hoses and petroleum pipelines |
| Size: | 3″ (76 mm) |
| Mates with: | Mates with types E (male × hose) and F (male × external thread) |
| Material: | Brass or stainless steel (on request) |
| Working medium: | Gasoline, diesel, biofuel, water, industrial liquids |
| Working pressure: | up to 7 bar (1 MPa) |
| Operating temperature: | −20…+80 °C |
| Standard: | A-A-59326 / DIN 2828 |
| Warranty: | 12 months |
| Supplier: | LLC «NVF Gerkon» |

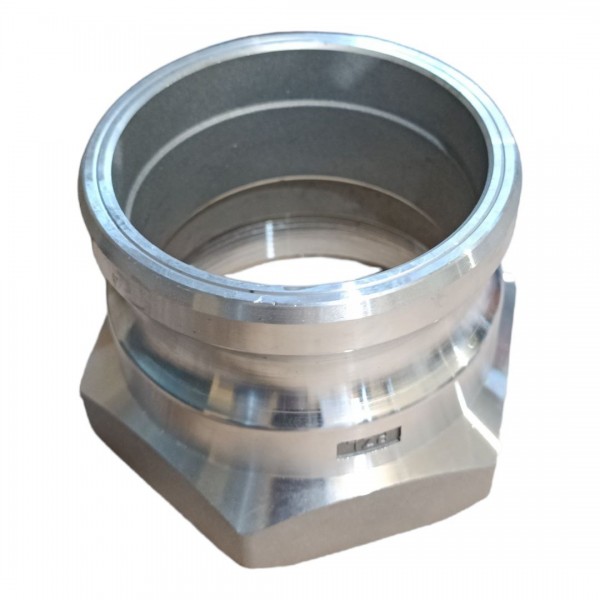

Camlock Type A — FEMALE × External Thread 3″ (76 mm)
CAMLOCK Type A — cam-lock coupling FEMALE on one side and external (male) pipe thread 3″ (76 mm) on the other. Used to connect the camlock system to stationary pipelines through threaded connection — screws into the internal thread of a pipe or fitting, and on the other side receives a MALE adapter (Type E or F).
Where Type A is Applied
- On stationary pipelines of oil depots and fuel trucks — permanent hose connection point
- On tanks and cisterns — permanent camlock inlet for discharge/loading
- On pump equipment — pump outlet with thread converts into a quick-disconnect coupling
- On filters and meters — simplifies maintenance (quick disassembly for cleaning)
What is CAMLOCK
Cam-Lock — an international standard for quick-disconnect cam couplings (standard A-A-59326, formerly Mil-Spec MIL-C-27487). Two rotating cams on the FEMALE coupling provide reliable vibration-resistant connection with a MALE adapter without threads, pins, or additional locks. Assembly and disassembly takes 1-3 seconds without tools.
Where it is Applied
- Gas stations and oil depots — connecting fuel truck hoses to pipelines
- Fuel trucks — rapid hose assembly and disassembly
- Industry — transfer of technical fluids
- Agriculture — refueling sprayers and cisterns
- Fire safety — fire hose connections
Material and Parameters
Standard version — brass. Custom order — stainless steel AISI 304/316. Operating temperature −20…+80 °C, pressure up to 7 bar (1 MPa). Standard A-A-59326 / DIN 2828 — interchangeable with any CAMLOCK worldwide.
Delivery and Warranty
In stock, shipped on the day of payment throughout Ukraine (1-3 days). 12-month warranty. Full range of Types A, B, C, D, DC, E, F in sizes from ½″ to 6″ — contact the manager. Export via NOVA GLOBAL.
