CAMLOCK Type E 3″ Specifications:
| Type: | CAMLOCK E (Male coupler × hose shank) |
| Purpose: | Quick-disconnect coupling for hoses and pipelines pumping petroleum products |
| Size: | 3″ (76 mm) |
| Connection: | Male camlock end + hose shank end |
| Mating types: | Mates with types C (female × hose), D (female × female thread), DC (dust cap female) |
| Material: | Brass or stainless steel (on request) |
| Working medium: | Gasoline, diesel, biofuel, water, industrial liquids |
| Working pressure: | up to 7 bar (1 MPa) |
| Operating temperature: | −20…+80 °C |
| Standard: | A-A-59326 (US Mil-Spec) / DIN 2828 |
| Warranty: | 12 months |
| Supplier: | LLC «NVF Gerkon» |

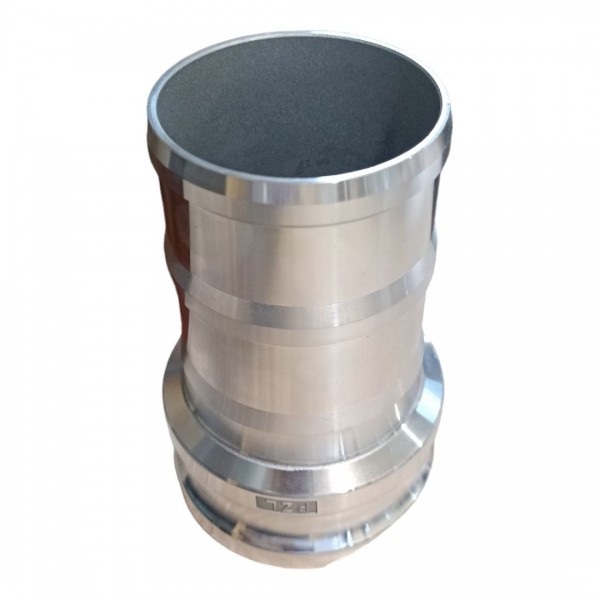

Camlock Type E for 76 mm (3″) Hose — Quick-Disconnect Coupling
CAMLOCK Type E — cam lever coupling with one side (MALE) and barbed hose adapter for inner diameter 76 mm (3″) on the other. Used for quick connection of hoses to stationary pipelines, drums, tanks, and equipment for pumping petroleum products, technical fluids, water, biofuel. Connects without tools — in a couple of seconds by closing two cam levers.
What is CAMLOCK
Cam-Lock — an international standard for quick-disconnect cam couplings, developed in the USA (standard A-A-59326, formerly Mil-Spec MIL-C-27487). Two rotating cam levers on the FEMALE coupling provide reliable vibration-resistant connection with the MALE adapter without using threads, cotter pins, bolts, or additional fasteners. Assembly and disassembly takes 1–3 seconds.
Type E — What Is It
In the CAMLOCK system there are 7 basic types (A, B, C, D, DC, E, F) and a pair of plugs:
- Type E (this product) — MALE × barbed hose adapter. One end inserts into the FEMALE coupling and is secured by cam levers, the other slides onto a rubber or PVC hose and is secured with a hose clamp
- Type C — FEMALE × barbed hose adapter (connects with E)
- Type D — FEMALE × internal thread (for connection to pipeline via threaded joint, connects with E)
- Type DC — FEMALE plug for sealing adapter E
Applications
- Gas stations and oil depots — connection of fuel truck hoses to stationary pipelines
- Fuel tankers — quick assembly/disassembly of hoses
- Industry — pumping technical fluids, equipment washing
- Agriculture — irrigation, filling sprayers and tanker trucks
- Construction — water supply, concrete delivery
- Fire safety — connection of fire hoses
Advantages of Cam Lever Couplings
- Assembly in 1–3 seconds without tools
- Vibration-resistant connection — does not separate under load
- Standardization — interchangeable with any CAMLOCK manufacturer worldwide
- Compatibility with aggressive media when selecting material (brass, stainless steel)
- Durability — rated for thousands of assembly/disassembly cycles
Material and Temperature Range
Standard version — brass for gasoline, diesel, and most technical fluids. Custom stainless steel AISI 304/316 available for aggressive media (acids, alkalis, chemicals) and food industry. Operating range −20…+80 °C, pressure up to 7 bar (1 MPa).
Delivery and Analogues
Camlock Type E in stock, shipment on day of payment by Nova Poshta, CAT, or shared cargo throughout Ukraine (1–3 days). Warranty 12 months. Complete line of types A, B, C, D, DC, E, F in sizes from ½″ to 6″ — contact manager for selection. Export via NOVA GLOBAL.
