U607-С Specifications:
| Type: | Hose-end swivel coupling |
| Part number: | U607-C |
| Connection size: | 1″ (NPT thread) |
| Rotation angle: | 360° (free rotation) |
| Body material: | Aluminum with brass bushing |
| Working medium: | Gasoline, diesel, biofuel |
| Working pressure: | up to 3 bar |
| Installation location: | Between hose end and nozzle inlet |
| Nozzle compatibility: | OPW 11A/11B, ZVA Slimline 2, Husky 1A/X, Elaflex |
| Warranty: | 12 months |
Swivel Joint U607-С 1″ for Fuel Dispenser Nozzle
U607-С — swivel joint with threaded connection 1 inch (NPT) for installation between the end of the delivery hose and the inlet of the fuel nozzle. Provides free rotation of the nozzle at 360° relative to the hose — this eliminates hose twisting during nozzle delivery into the fuel tank at various angles and significantly extends hose service life.
Why You Need a Swivel Joint
Without a swivel joint, the delivery hose twists with each refueling — customers approach from different sides, rotate nozzles differently. Twisting leads to:
- Premature wear of hose rubber — cracks at bends
- Stress at connection points — frequent leaks
- Operational difficulty — operator must "untangle" the hose manually
- Shortened hose service life from 5 years to 1-2
Installation of the U607-С swivel joint eliminates all these problems — the hose always lies freely.
Design Features
- Housing — cast aluminum with brass bushing in the rotation zone (combination of lightness and wear resistance)
- Internal bearings — smooth rotation even under 3 bar pressure
- Double NBR seals — reliable sealing
- Standard 1″ NPT connection — compatible with most nozzles
- Swivel joint — consumable component, recommended replacement interval 1-2 years of intensive operation
Nozzle Compatibility
U607-С fits nozzles with standard inlet connection 1″ NPT (internal thread):
- OPW 11A, 11B
- ZVA Slimline 2
- Husky 1A, Husky X
- Elaflex EA
- Other standard models

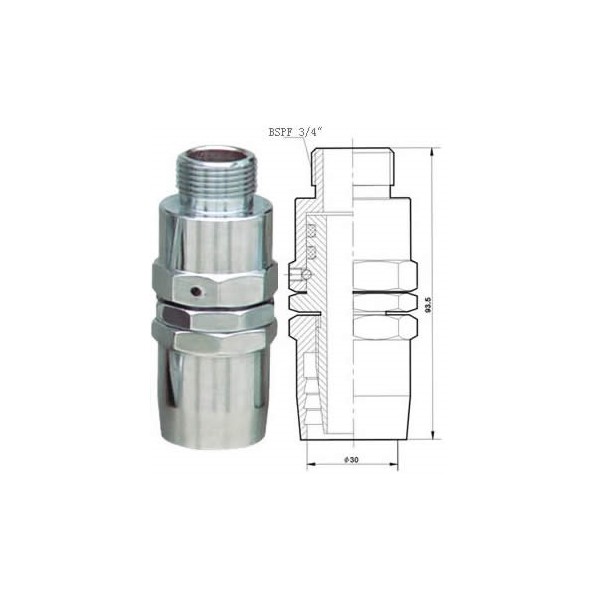

For nozzles with 3/4″ thread, smaller variants U607-A/B are available (to order).
When Replacement Is Needed
- Swivel joint does not rotate or rotates with difficulty (bearing seizure)
- Fuel leaks through the housing (seal wear)
- Visible cracks or corrosion of aluminum housing
- Routine maintenance — once every 1-2 years of intensive operation
Delivery and Warranty
U607-С in stock. Shipment on day of payment by Nova Poshta, SAT or shared cargo throughout Ukraine (1-3 days). Manufacturer warranty 12 months. When purchasing batches for gas station networks or equipping new fuel dispensers — individual terms available. Technical consultations on selection and compatibility from engineer within 1 business day. Export to Kazakhstan, Moldova, Georgia via NOVA GLOBAL.
